Pulsed Erbium Doped Fiber Laser Kult Series for 3D scanning

PEFL-KULT

PEFL-KULT

COMPACT PULSED LASER TRANSMITTER at 1550nm

PEFL-KULT is a compact pulsed laser transmitter, delivering high peak power and high energy per pulse, for range finding applications. Its specific shape allows an easy integration even in tiny spaces. Its perfect design requires no maintenance.

Compact pulsed laser transmitter finds its utility in applications like 3D scanning, mapping, telemetry and also in supercontinuum generation, thanks to the high peak power operation.

Lumibird PEFL-KULT is delivering a diffraction-limited beam with a large choice of repetition rate. Thus it can perform high-resolution images.

Lumibird designs its electronic boards, offering then a broad range of functionalities. Therefore, each pulsed fiber laser can be controlled either in digital or analogic. Also, an external TTL signal triggers optical pulses, making this compact pulsed laser transmitter agile to work.

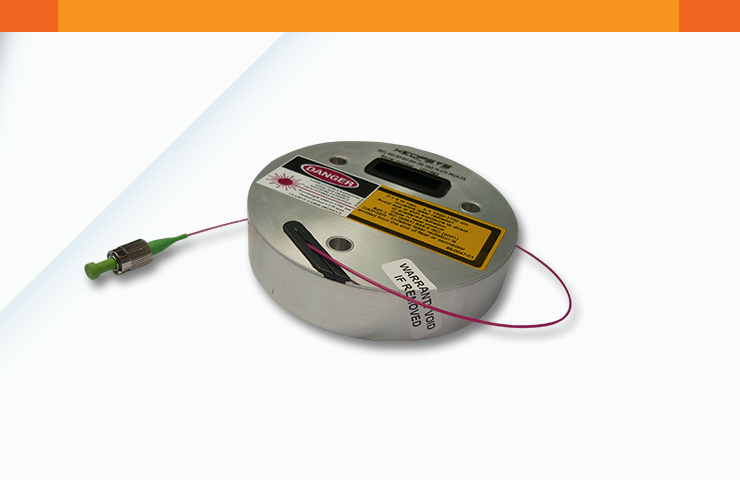

The original cylindrical and compact shape is vibrations and shocks tested, in respect of military standards (MIL-STD-810F, RTCA-DO-160G). This packaging material is also radiations proven, allowing spatial applications when the laser is equipped with Radhard erbium doped fiber.

Lasers are also passively cooled through the bottom plate. A simple heat sink is required to help the device at heat dissipation.

The PEFL-KULT does not require maintenance and can operate in harshest environmental conditions. over an extended period. More than 5 000  are working all over the world.

What Applications

Compact Pulsed Laser Transmitter Key Features

  • 1.5 µm eye-safe operation
  • Energy per pulse up to 100 µJ
  • Peak power up to 15 kW
  • Pulse duration from 0.5 ns to 200 ns
  • Pulse repetition frequency from 10 Hz to 1 MHz
  • Continuous or burst operation
  • Diffraction limited output beam
  • Linear or random polarization
  • Low power consumption
  • Wide operating temperature range (-35 °C to +65 °C)
  • Compact and rugged package
