Pulsed Erbium Fiber Laser for range-finding

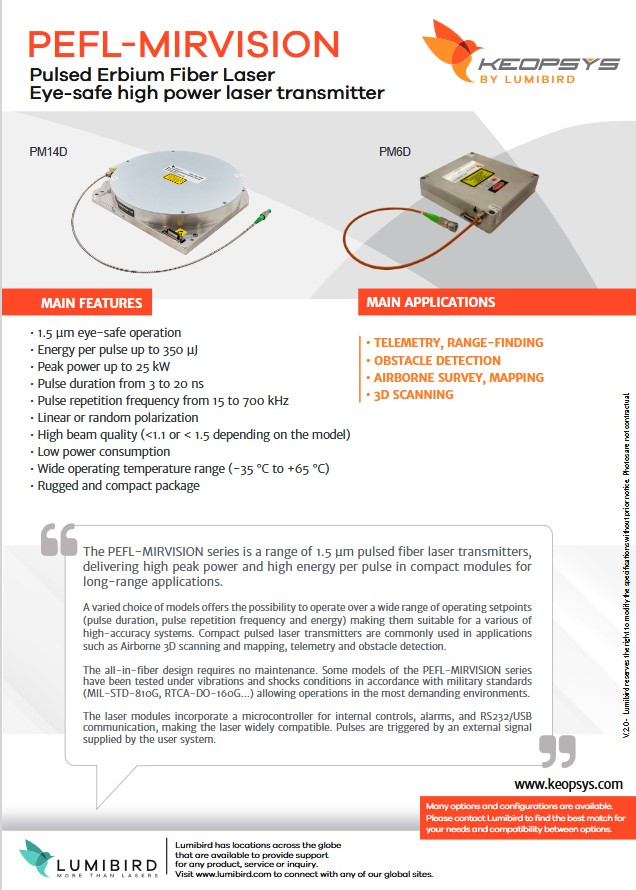

PEFL-MIRVISION

PEFL-MIRVISION

HIGH PEAK POWER PULSED ERBIUM FIBER LASER for Range-finding

For Range-finding or telemetry applications, a pulsed erbium fiber laser becomes essential. PEFL-MIRVISION benefits from Lumibird design can deliver pulses from 0.5 to 200 ns over a wide range of repetition rates (10 kHz to 1 MHz). Compact and powerful, this laser will answer all open to question.

Range-finding, telemetry, and 3D scanning are parts of the countless applications that can be performed with a pulsed erbium fiber laser. Lumibird was the first company to propose pulsed erbium fiber lasers. Therefore, we offer our knowledge and experience to assist you to find the best optical solution.

Because of its rugged package compliant with military standards (MIL-STD-461, MIL-STD-810, RTCA-DO-160G…), thus PEFL-MIRVISION series can work in the most stringent environments 24h/24.

Lumibird provides numerous of PEFL-MIRVISION which are working days and nights with vibrations, shocks and wide range of temperature deltas.

Furthermore, the rugged module incorporates a microcontroller for internal controls, alarms, and RS232/USB communication. This functionality, provided to the user, make the module compatible with all communication systems.

The pulses can be trigger from an external TTL signal making, therefore, this erbium fiber laser very flexible to work.

No maintenance is required, for this pulsed laser family. And no installation is needed, nevertheless, on request, Lumibird will guide you for your first integration.

What Applications

  • Range-finding
  • Telemetry
  • Obstacle detection
  • Airborne survey, mapping
  • 3D scanning
  • Wind sensing

Pulsed Erbium Fiber laser: Key Features

  • 1.5 µm eye-safe operation
  • Energy per pulse up to 350 µJ
  • Peak power up to 25 kW
  • Choice of pulse duration from 0.5 ns to 200 ns
  • Pulse repetition frequency from 10 kHz to 1 MHz
  • Linear or random polarization
  • High output-beam quality (from 1.5 to 2.5)
  • Low power consumption
  • Wide operating temperature range (-35 °C to +65 °C)
  • Rugged and compact package
